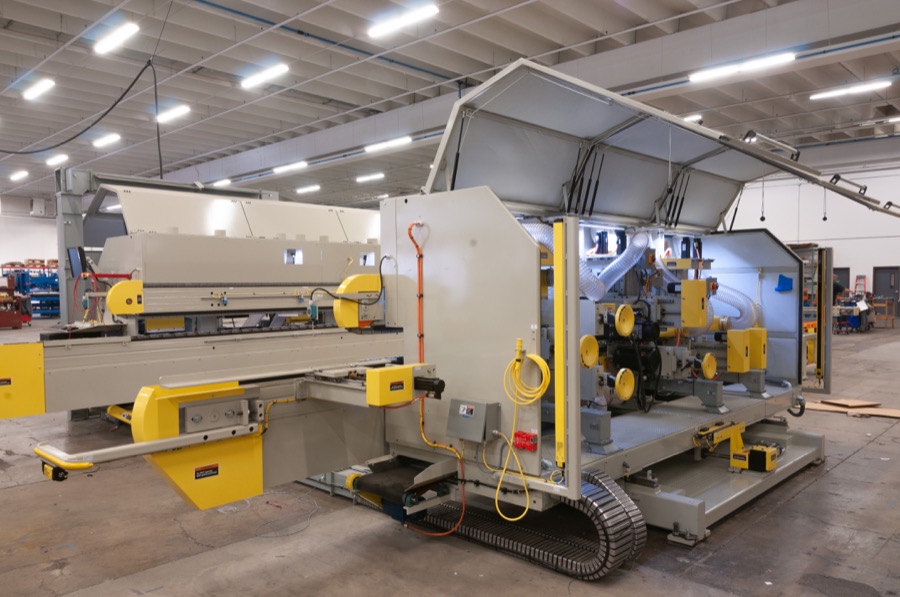

Sash and Frame Double End Tenoner
Double End Trim/Tenon/Jump Cope/Cope profiling of window and door components. Automatic feed to Molder.
- 1/2″ to 6″ Thick, 3/4″ to 12″ Wide, 6″ to 144″ Long – Other Capacity Available
- Operators manually load parts ahead of the feed-chain lugs
- Feed chains carry parts through five processing stations on each side of the machine
- Driven outfeed belts unload parts automatically
- 60 FPM
Setup and Feed Control
Servo-controlled adjustments are used at selected machine positions, including the feed drive and hold-downs. The two feed-chain drives are electronically linked, and the feed speed can be adjusted and monitored at the HMI. The proposal specifies a feed speed of 10 to 60 feet per minute. Selected machine positions also use handwheel adjustments with SIKO position indicators.
Enclosure and Dust Collection

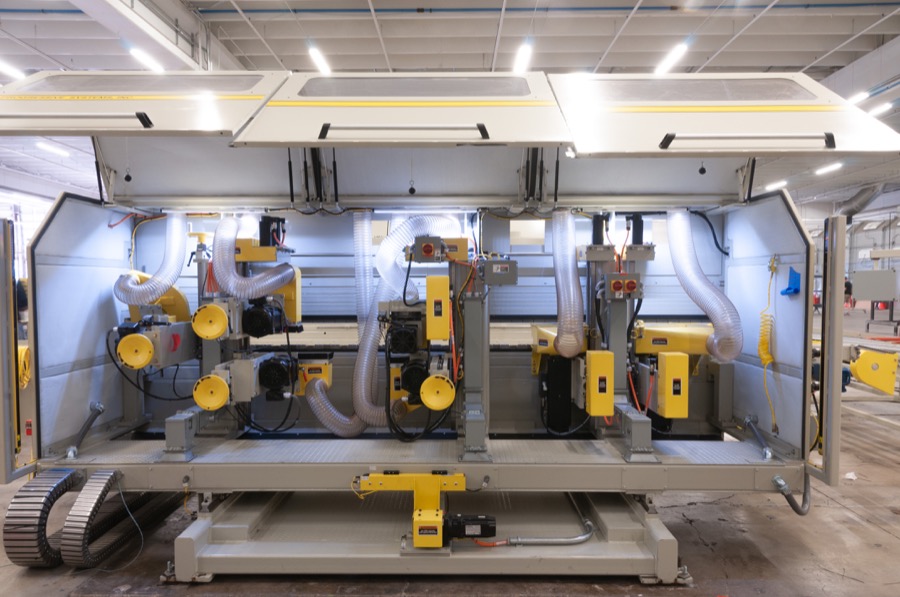

The machine has a sound and dust enclosure with hinged access doors, inspection windows, interior lighting, and safety interlocks. Individual dust hoods are provided at the cutter motor assemblies, with flexible ducting routed to the top of the enclosure. Refuse belts beneath the stations carry waste material toward the machine infeed.
